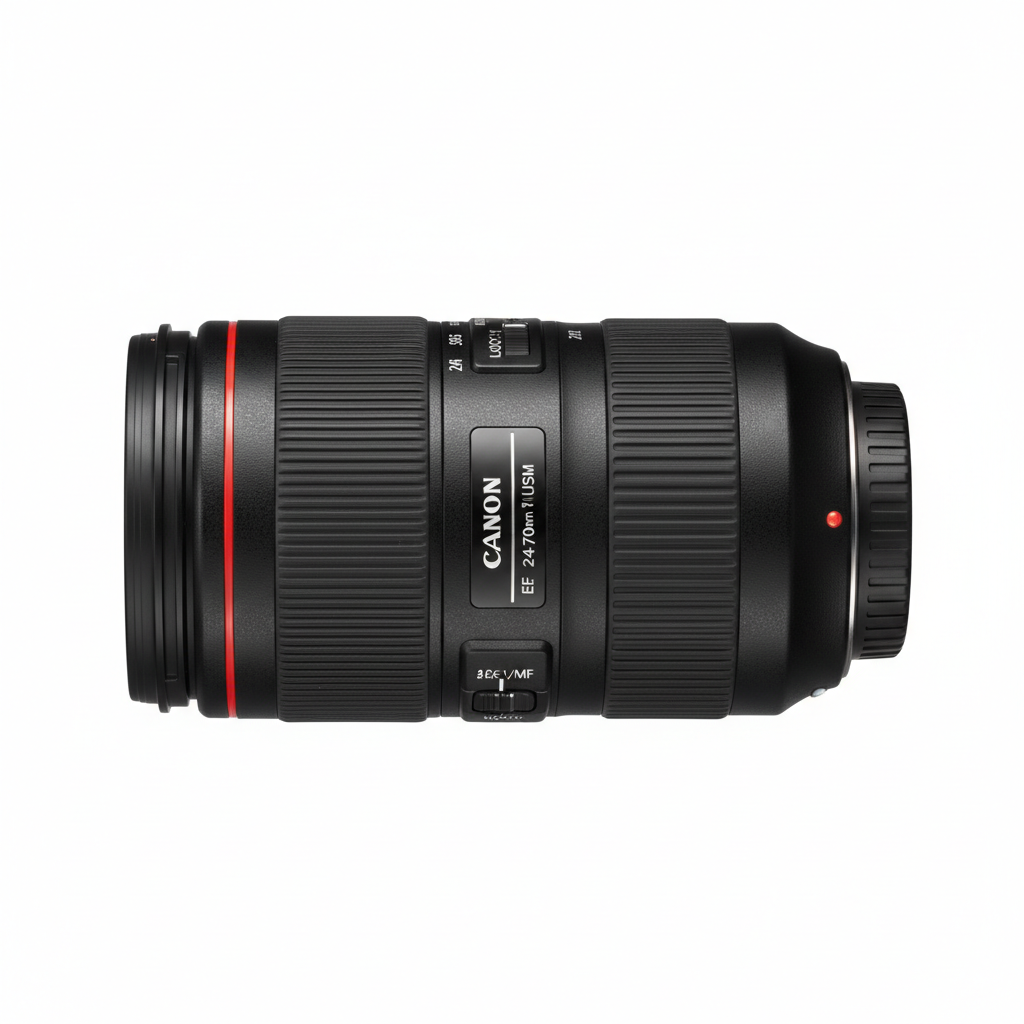

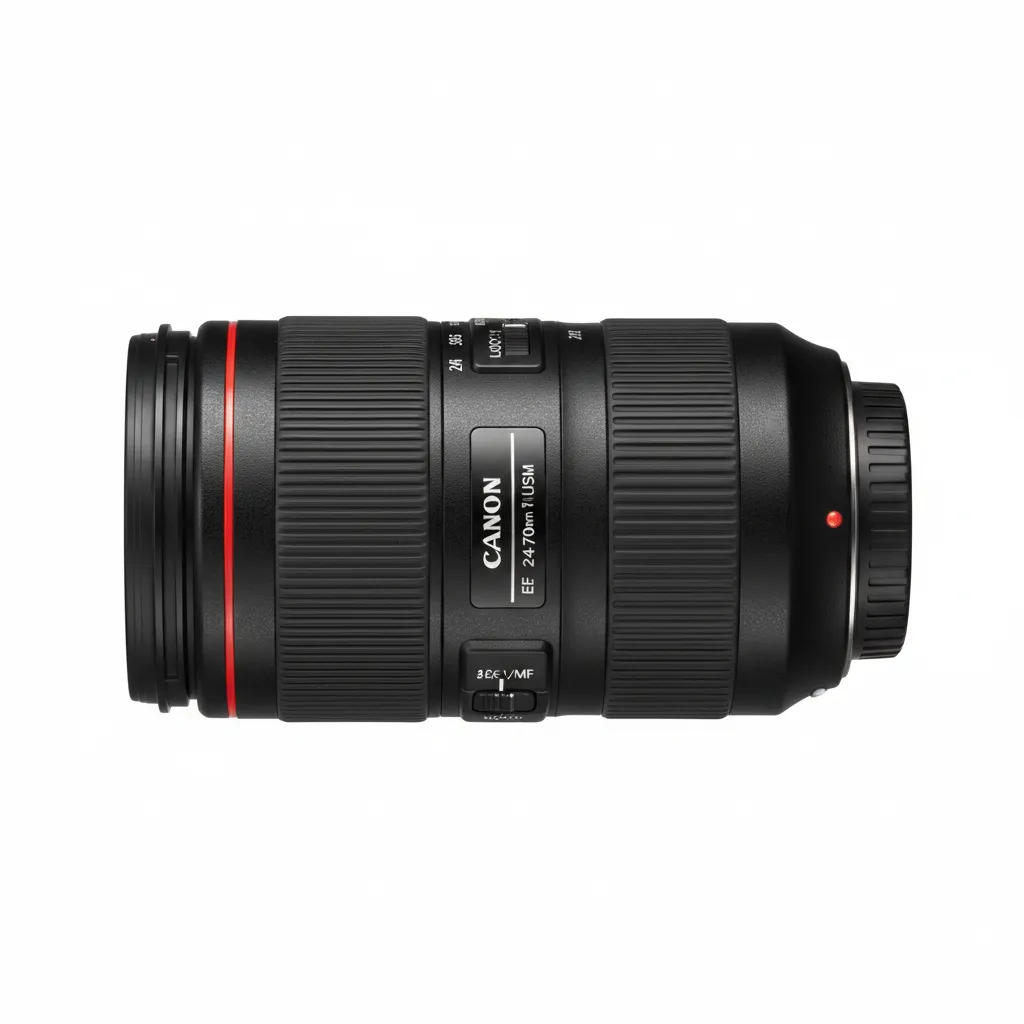

Canon EF 24-70mm f/2.8L II USM
The gold standard professional zoom lens
Key Features
Lens Capabilities
Click the Links Below for Details
The Most Important Rings & Switches — Canon EF 24-70mm f/2.8L II USM
| Ring / Switch / Control | Status | Note |
|---|---|---|
| Focus Ring | ✓ Present | Manual focus override |
| Zoom Ring | ✓ Present | Rubberized grip |
| Aperture Ring | ✗ Not Present | Controlled via camera body |
| AF/MF Switch | ✓ Present | Side mounted |
| Image Stabilisation Switch | ✗ Not Present | Lens lacks OIS |
| Focus Limiter Switch | ✗ Not Present | |
| Function (L-Fn) Button | ✗ Not Present | |
| Zoom Lock Switch | ✓ Present | Locks at 24mm |
| Optical Image Stabilisation (OIS) | ✗ Not Present | |
| Weather Sealing | ✓ Present | Full dust/moisture resistance |
How-to Use Canon EF 24-70mm f/2.8L II USM
Welcome to the How-to section of the lens. In this Light & Composition University website, each page for a lens has a how-to section and a section for learning. The rings, switches and controls of each lens are placed differently between brands and models. The how-to section helps you operate the lens; however, if you are interested in learning photography, you also need to know what each control changes and why you would change it. Click the “Learn” or scroll down.
Learn & Master Photography with Canon EF 24-70mm f/2.8L II USM
For over a decade, we have been teaching photography following a university standard. No one does it better than us. We have a selection of courses, diplomas, graduate and post-graduate programs, as well as some of our best-selling university press publications, to guide you in the best possible way for your lens. Enroll in the fundamentals and then move to the genres you want to master.
Technical Specification
| Lens Type | Standard Zoom |
| Focal Length | 24-70mm |
| Max Aperture | f/2.8 |
| Min Aperture | f/22 |
| Elements/Groups | 18/13 |
| Diaphragm Blades | 9 |
| Min Focus Distance | 0.38m |
| Max Magnification | 0.21x |
| Filter Thread | 82mm |
| Focus Motor | Ring USM |
| Weather Sealing | Yes |
| Weight | 805g |
| Dimensions | 88.5 x 113.0 mm |
| Mount | Canon EF |
| Format | Full Frame |
