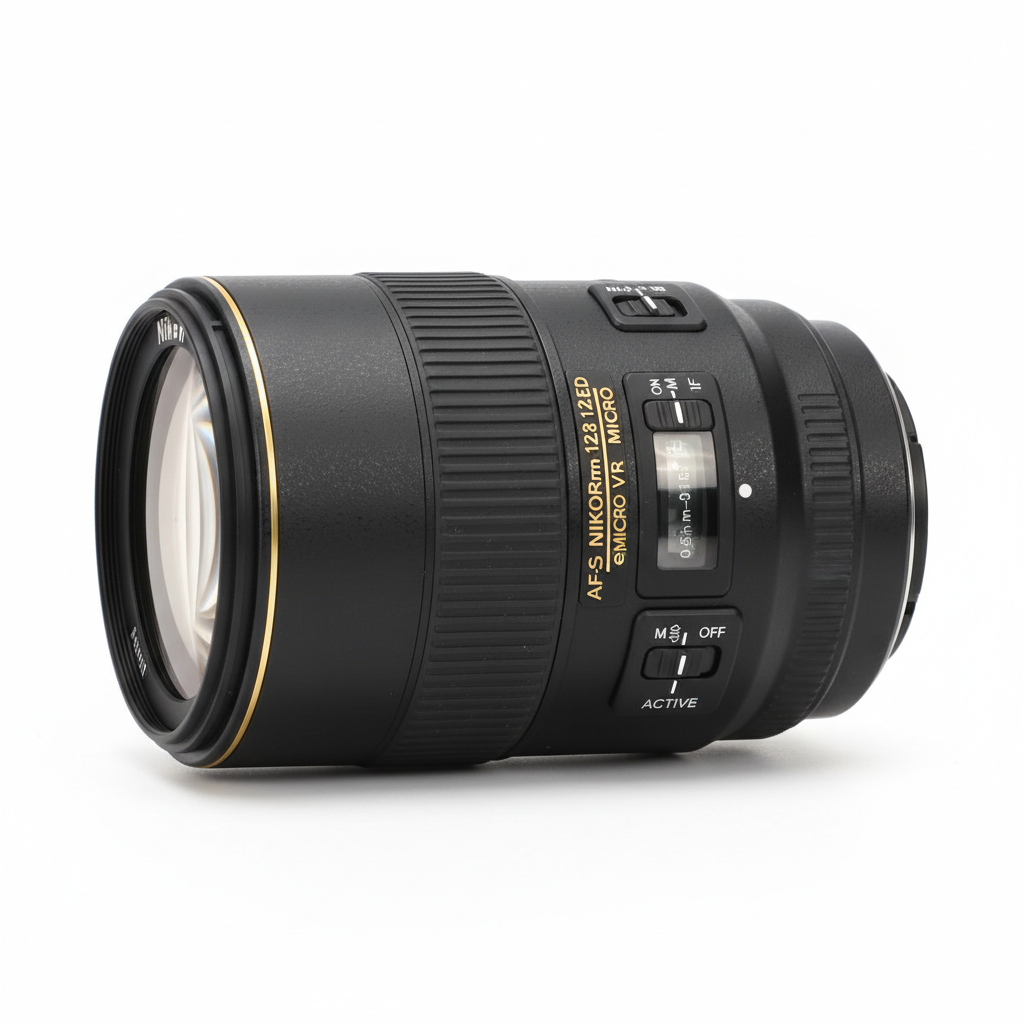

Nikon AF-S 105mm f/2.8G IF-ED VR Micro
The legendary sharp macro lens for Nikon
Key Features
Lens Capabilities
Click the Links Below for Details
The Most Important Rings & Switches — Nikon AF-S 105mm f/2.8G IF-ED VR Micro
| Ring / Switch / Control | Status | Note |
|---|---|---|
| Focus Ring | ✓ Present | Manual focus override |
| Zoom Ring | ✗ Not Present | Prime lens |
| Aperture Ring | ✗ Not Present | Controlled via camera body |
| AF/MF Switch | ✓ Present | M/A - M switch |
| Image Stabilisation Switch | ✓ Present | VR On/Off |
| Focus Limiter Switch | ✓ Present | Full / Infinity-0.5m |
| Function (L-Fn) Button | ✗ Not Present | |
| Zoom Lock Switch | ✗ Not Present | |
| Optical Image Stabilisation (OIS) | ✓ Present | VR II |
| Weather Sealing | ✓ Present | Rubber mount seal |
How-to Use Nikon AF-S 105mm f/2.8G IF-ED VR Micro
Welcome to the How-to section of the lens. In this Light & Composition University website, each page for a lens has a how-to section and a section for learning. The rings, switches and controls of each lens are placed differently between brands and models. The how-to section helps you operate the lens; however, if you are interested in learning photography, you also need to know what each control changes and why you would change it. Click the “Learn” or scroll down.
Learn & Master Photography with Nikon AF-S 105mm f/2.8G IF-ED VR Micro
For over a decade, we have been teaching photography following a university standard. No one does it better than us. We have a selection of courses, diplomas, graduate and post-graduate programs, as well as some of our best-selling university press publications, to guide you in the best possible way for your lens. Enroll in the fundamentals and then move to the genres you want to master.
Technical Specification
| Focal Length | 105mm |
| Maximum Aperture | f/2.8 |
| Minimum Aperture | f/32 |
| Lens Construction | 14 elements in 12 groups |
| Angle of View | 23u00b0 20' (FX) / 15u00b0 20' (DX) |
| Minimum Focus Distance | 0.31m (1.0 ft) |
| Maximum Reproduction Ratio | 1.0x |
| Diaphragm Blades | 9 (rounded) |
| Filter Size | 62mm |
| Focus Motor | Silent Wave Motor (SWM) |
| Stabilization | VR II (4 stops) |
| Weather Sealing | Yes (Rubber gasket mount) |
| Dimensions | 83 x 116 mm |
| Weight | 750g |
