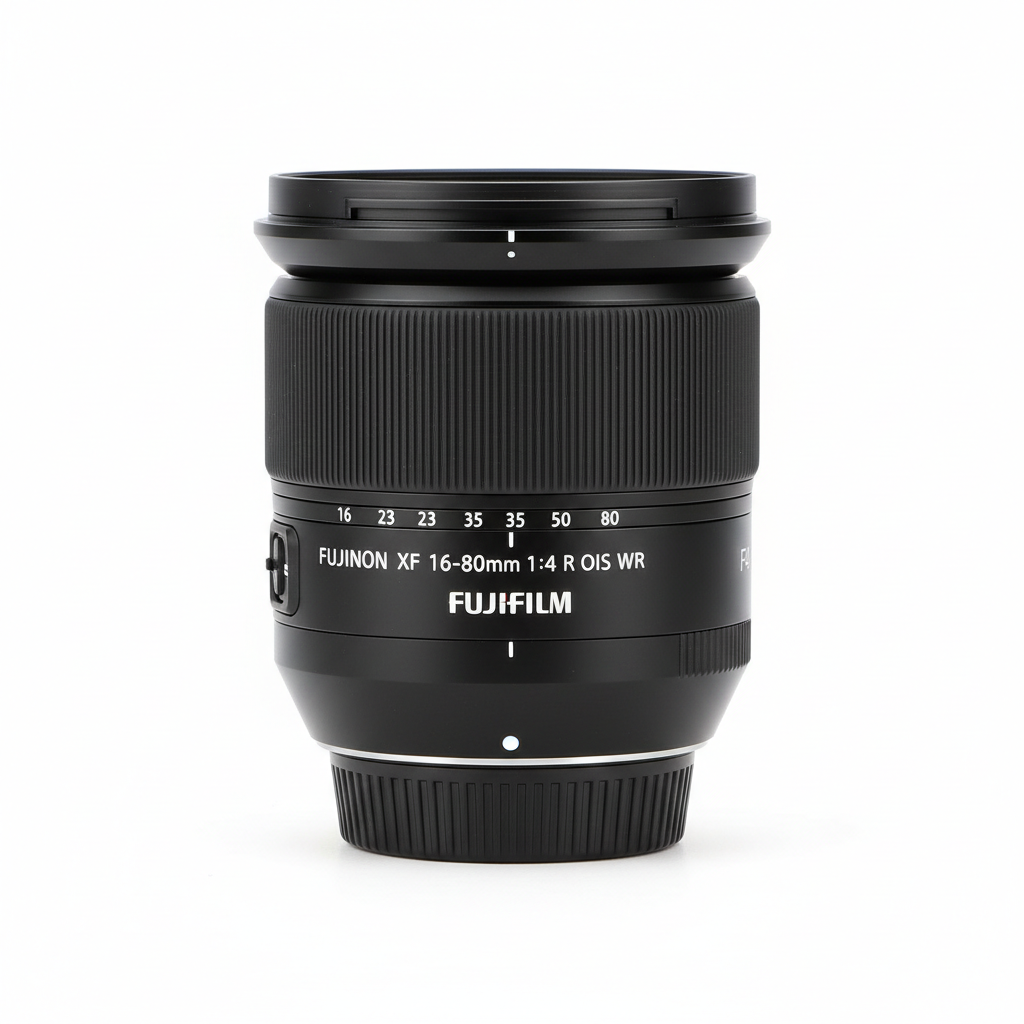

Fujifilm Fujinon XF 16-80mm f/4 R OIS WR
Versatile all-in-one zoom with powerful stabilization
Key Features
Lens Capabilities
Click the Links Below for Details
The Most Important Rings & Switches — Fujifilm Fujinon XF 16-80mm f/4 R OIS WR
| Ring / Switch / Control | Status | Note |
|---|---|---|
| Focus Ring | ✓ Present | Electronic focus ring |
| Zoom Ring | ✓ Present | Mechanical zoom ring |
| Aperture Ring | ✓ Present | Click-stop aperture ring |
| AF/MF Switch | ✗ Not Present | Controlled via camera body |
| Image Stabilisation Switch | ✓ Present | Dedicated OIS on/off switch |
| Focus Limiter Switch | ✗ Not Present | |
| Function (L-Fn) Button | ✗ Not Present | |
| Zoom Lock Switch | ✗ Not Present | |
| Optical Image Stabilisation (OIS) | ✓ Present | 6-stop compensation |
| Weather Sealing | ✓ Present | Dust and moisture resistant |
How-to Use Fujifilm Fujinon XF 16-80mm f/4 R OIS WR
Welcome to the How-to section of the lens. In this Light & Composition University website, each page for a lens has a how-to section and a section for learning. The rings, switches and controls of each lens are placed differently between brands and models. The how-to section helps you operate the lens; however, if you are interested in learning photography, you also need to know what each control changes and why you would change it. Click the “Learn” or scroll down.
Learn & Master Photography with Fujifilm Fujinon XF 16-80mm f/4 R OIS WR
For over a decade, we have been teaching photography following a university standard. No one does it better than us. We have a selection of courses, diplomas, graduate and post-graduate programs, as well as some of our best-selling university press publications, to guide you in the best possible way for your lens. Enroll in the fundamentals and then move to the genres you want to master.
Technical Specification
| Focal Length | 16-80mm (24-122mm equivalent) |
| Max Aperture | f/4 |
| Min Aperture | f/22 |
| Lens Construction | 16 elements in 12 groups |
| Min Focus Distance | 0.35m |
| Max Magnification | 0.25x |
| Number of Blades | 9 (rounded) |
| Filter Size | 72mm |
| Dimensions | 78.3mm x 88.9mm |
| Weight | 440g |
