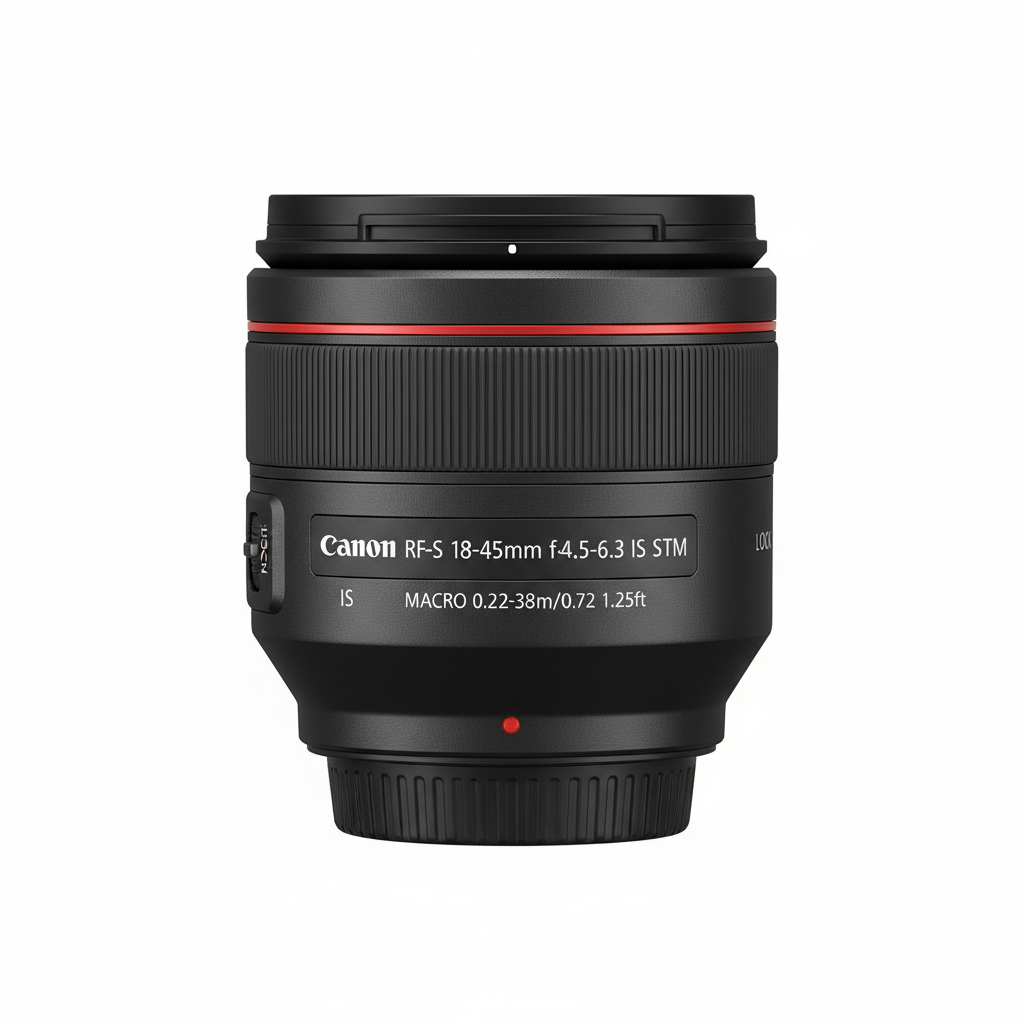

Canon RF-S 18-45mm f/4.5-6.3 IS STM
Ultra-compact standard zoom for APS-C mirrorless
Key Features
Lens Capabilities
Click the Links Below for Details
The Most Important Rings & Switches — Canon RF-S 18-45mm f/4.5-6.3 IS STM
| Ring / Switch / Control | Status | Note |
|---|---|---|
| Focus Ring | ~ Limited | Combined focus/control ring |
| Zoom Ring | ✓ Present | |
| Aperture Ring | ✗ Not Present | |
| AF/MF Switch | ✗ Not Present | Controlled via camera menu |
| Image Stabilisation Switch | ✗ Not Present | Controlled via camera menu |
| Focus Limiter Switch | ✗ Not Present | |
| Function (L-Fn) Button | ✗ Not Present | |
| Zoom Lock Switch | ✗ Not Present | Manual retractable mechanism |
| Optical Image Stabilisation (OIS) | ✓ Present | |
| Weather Sealing | ✗ Not Present |
How-to Use Canon RF-S 18-45mm f/4.5-6.3 IS STM
Welcome to the How-to section of the lens. In this Light & Composition University website, each page for a lens has a how-to section and a section for learning. The rings, switches and controls of each lens are placed differently between brands and models. The how-to section helps you operate the lens; however, if you are interested in learning photography, you also need to know what each control changes and why you would change it. Click the “Learn” or scroll down.
Learn & Master Photography with Canon RF-S 18-45mm f/4.5-6.3 IS STM
For over a decade, we have been teaching photography following a university standard. No one does it better than us. We have a selection of courses, diplomas, graduate and post-graduate programs, as well as some of our best-selling university press publications, to guide you in the best possible way for your lens. Enroll in the fundamentals and then move to the genres you want to master.
Technical Specification
| Focal Length | 18-45mm |
| Aperture Range | f/4.5-6.3 to f/32 |
| Lens Construction | 7 elements in 7 groups |
| Min Focus Distance | 0.2m (18-35mm) / 0.35m (45mm) |
| Max Magnification | 0.16x |
| Filter Size | 49mm |
| Diaphragm Blades | 7 |
| Stabilization | 4 stops (CIPA) |
| Autofocus Motor | Lead-screw STM |
| Weight | 130g |
| Dimensions | 69mm x 44.3mm (retracted) |
