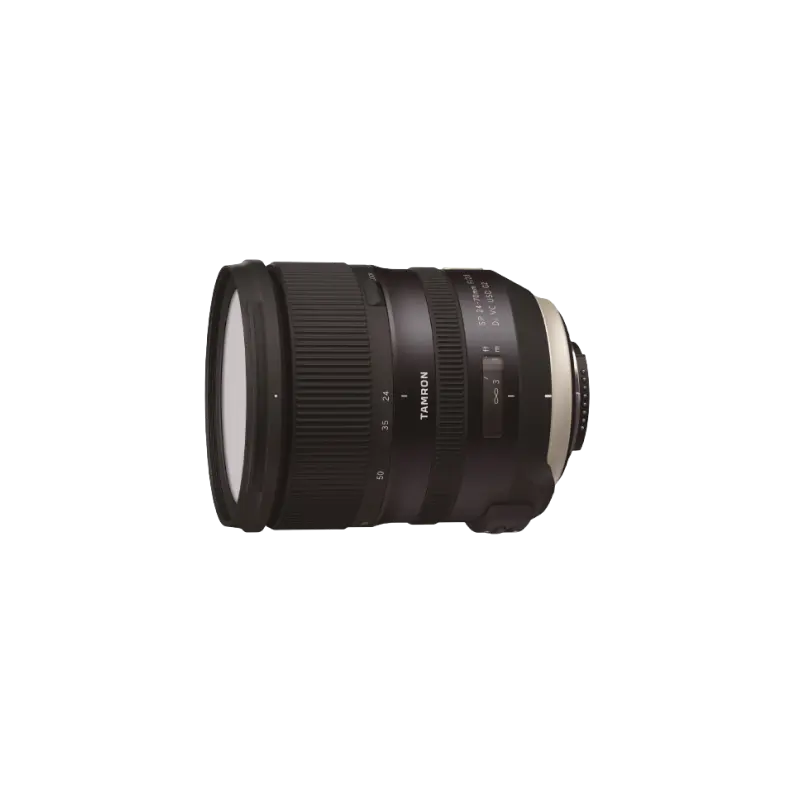

Tamron SP 24-70mm f/2.8 Di VC USD G2
Professional standard zoom with advanced vibration compensation
Key Features
Lens Capabilities
Click the Links Below for Details
The Most Important Rings & Switches — Tamron SP 24-70mm f/2.8 Di VC USD G2
| Ring / Switch / Control | Status | Note |
|---|---|---|
| Focus Ring | ✓ Present | Manual focus override available |
| Zoom Ring | ✓ Present | Rubberized grip |
| Aperture Ring | ✗ Not Present | Controlled via camera body |
| AF/MF Switch | ✓ Present | |
| Image Stabilisation Switch | ✓ Present | VC On/Off |
| Focus Limiter Switch | ✗ Not Present | |
| Function (L-Fn) Button | ✗ Not Present | |
| Zoom Lock Switch | ✓ Present | Locks at 24mm |
| Optical Image Stabilisation (OIS) | ✓ Present | Tamron VC |
| Weather Sealing | ✓ Present | Moisture-resistant build |
How-to Use Tamron SP 24-70mm f/2.8 Di VC USD G2
Welcome to the How-to section of the lens. In this Light & Composition University website, each page for a lens has a how-to section and a section for learning. The rings, switches and controls of each lens are placed differently between brands and models. The how-to section helps you operate the lens; however, if you are interested in learning photography, you also need to know what each control changes and why you would change it. Click the “Learn” or scroll down.
Learn & Master Photography with Tamron SP 24-70mm f/2.8 Di VC USD G2
For over a decade, we have been teaching photography following a university standard. No one does it better than us. We have a selection of courses, diplomas, graduate and post-graduate programs, as well as some of our best-selling university press publications, to guide you in the best possible way for your lens. Enroll in the fundamentals and then move to the genres you want to master.
Technical Specification
| Focal Length | 24-70mm |
| Maximum Aperture | f/2.8 |
| Minimum Aperture | f/22 |
| Lens Construction | 17 elements in 12 groups |
| Angle of View | 84u00b004' - 34u00b021' |
| Diaphragm Blades | 9 (rounded) |
| Minimum Focus Distance | 0.38m (15 in) |
| Maximum Magnification | 1:5 |
| Filter Size | 82mm |
| Stabilization | VC (5 stops) |
| Focus Motor | USD |
| Weather Sealing | Yes |
| Weight | 900g |
| Dimensions | 88.4 x 108.5 mm |
| Mount | Canon EF / Nikon F |
