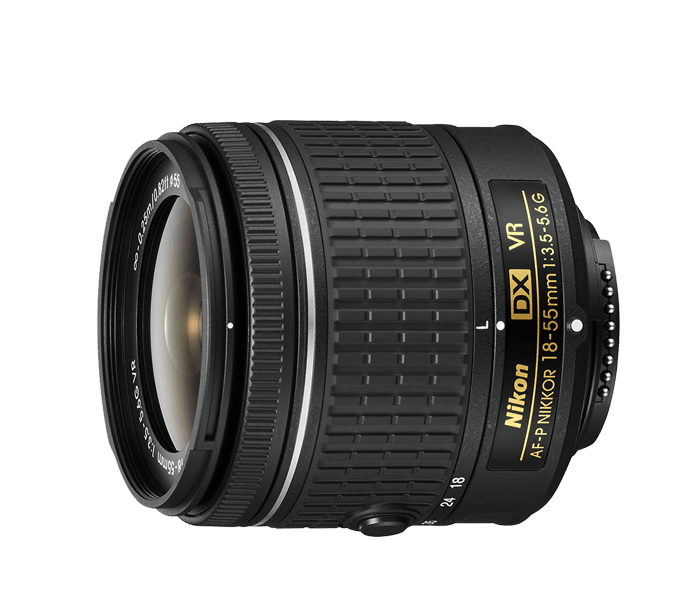

Nikon AF-P DX 18-55mm f/3.5-5.6G VR
Compact and quiet standard zoom for DX
Key Features
Lens Capabilities
Click the Links Below for Details
The Most Important Rings & Switches — Nikon AF-P DX 18-55mm f/3.5-5.6G VR
| Ring / Switch / Control | Status | Note |
|---|---|---|
| Focus Ring | ✓ Present | Electronic focus ring |
| Zoom Ring | ✓ Present | |
| Aperture Ring | ✗ Not Present | Controlled via camera body |
| AF/MF Switch | ✗ Not Present | Controlled via camera menu |
| Image Stabilisation Switch | ✗ Not Present | Controlled via camera menu |
| Focus Limiter Switch | ✗ Not Present | |
| Function (L-Fn) Button | ✗ Not Present | |
| Zoom Lock Switch | ✗ Not Present | |
| Optical Image Stabilisation (OIS) | ✓ Present | VR system |
| Weather Sealing | ✗ Not Present | Basic build only |
How-to Use Nikon AF-P DX 18-55mm f/3.5-5.6G VR
Welcome to the How-to section of the lens. In this Light & Composition University website, each page for a lens has a how-to section and a section for learning. The rings, switches and controls of each lens are placed differently between brands and models. The how-to section helps you operate the lens; however, if you are interested in learning photography, you also need to know what each control changes and why you would change it. Click the “Learn” or scroll down.
Learn & Master Photography with Nikon AF-P DX 18-55mm f/3.5-5.6G VR
For over a decade, we have been teaching photography following a university standard. No one does it better than us. We have a selection of courses, diplomas, graduate and post-graduate programs, as well as some of our best-selling university press publications, to guide you in the best possible way for your lens. Enroll in the fundamentals and then move to the genres you want to master.
Technical Specification
| Focal Length | 18-55mm |
| Aperture Range | f/3.5-5.6 to f/22-38 |
| Lens Construction | 12 elements in 9 groups |
| Angle of View | 76u00b0 to 28u00b0 50' |
| Min Focus Distance | 0.25m |
| Max Reproduction Ratio | 0.38x |
| Diaphragm Blades | 7 (rounded) |
| Filter Size | 55mm |
| Stabilization | VR (4 stops) |
| Focus Motor | Pulse Motor (AF-P) |
| Weight | 205g |
| Dimensions | 64.5 x 62.5 mm |
| Mount | Nikon F |
| Format | DX |
| Hood | HB-N106 (optional) |
