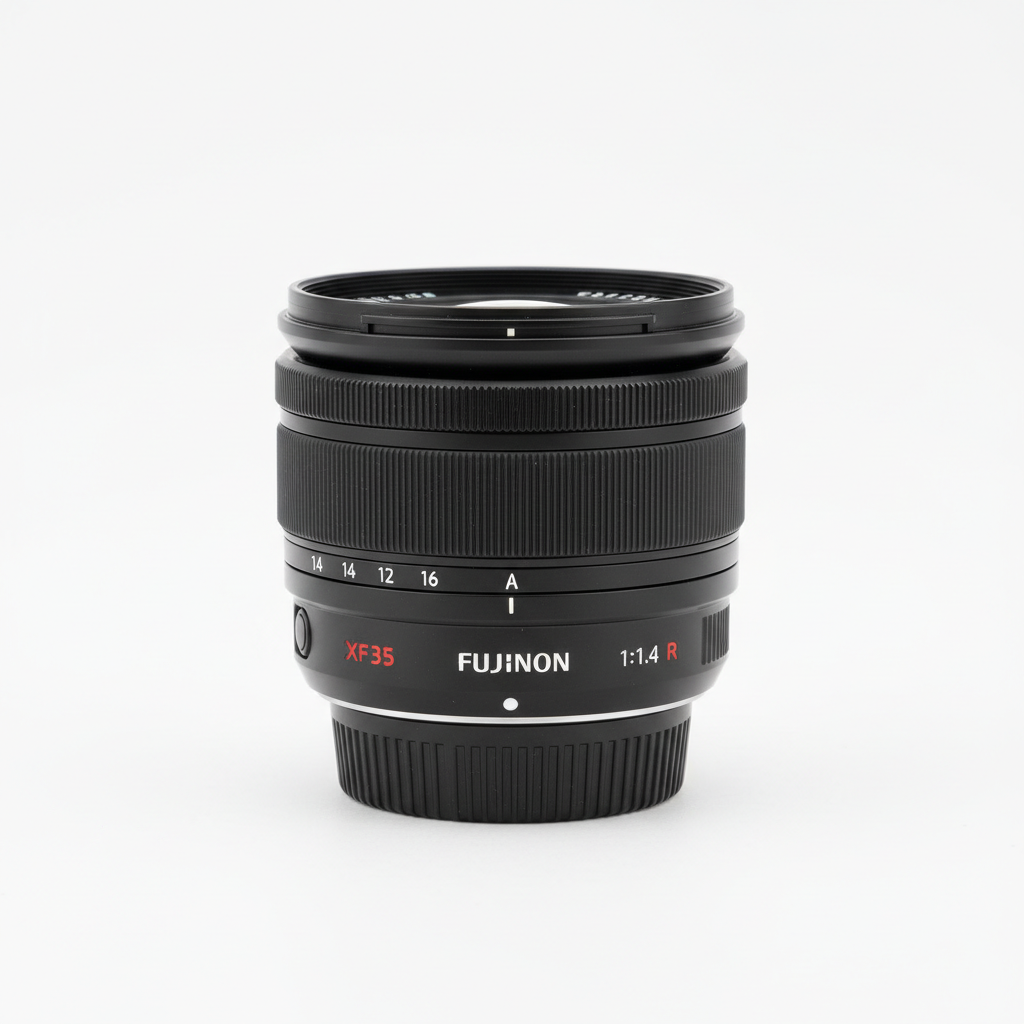

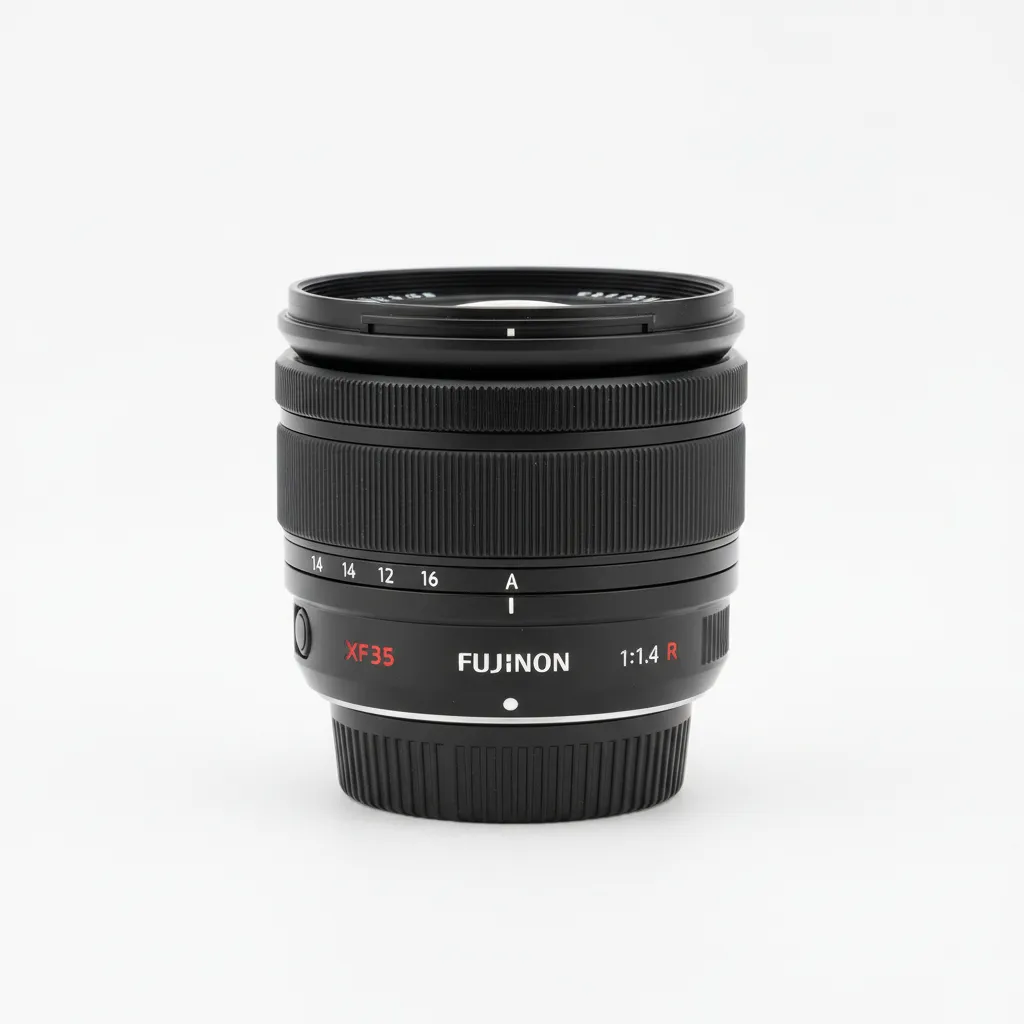

Fujifilm XF 35mm f/1.4 R
The legendary compact prime with character
Key Features
Lens Capabilities
Click the Links Below for Details
The Most Important Rings & Switches — Fujifilm XF 35mm f/1.4 R
| Ring / Switch / Control | Status | Note |
|---|---|---|
| Focus Ring | ✓ Present | Manual focus ring |
| Zoom Ring | ✗ Not Present | Prime lens |
| Aperture Ring | ✓ Present | Physical aperture ring with 1/3 stop clicks |
| AF/MF Switch | ✗ Not Present | Controlled via camera body |
| Image Stabilisation Switch | ✗ Not Present | Lens does not have OIS |
| Focus Limiter Switch | ✗ Not Present | |
| Function (L-Fn) Button | ✗ Not Present | |
| Zoom Lock Switch | ✗ Not Present | |
| Optical Image Stabilisation (OIS) | ✗ Not Present | |
| Weather Sealing | ✗ Not Present |
How-to Use Fujifilm XF 35mm f/1.4 R
Welcome to the How-to section of the lens. In this Light & Composition University website, each page for a lens has a how-to section and a section for learning. The rings, switches and controls of each lens are placed differently between brands and models. The how-to section helps you operate the lens; however, if you are interested in learning photography, you also need to know what each control changes and why you would change it. Click the “Learn” or scroll down.
Learn & Master Photography with Fujifilm XF 35mm f/1.4 R
For over a decade, we have been teaching photography following a university standard. No one does it better than us. We have a selection of courses, diplomas, graduate and post-graduate programs, as well as some of our best-selling university press publications, to guide you in the best possible way for your lens. Enroll in the fundamentals and then move to the genres you want to master.
Technical Specification
| Focal Length | 35mm (53mm equivalent) |
| Aperture Range | f/1.4 - f/16 |
| Lens Construction | 8 elements in 6 groups |
| Angle of View | 44.2 degrees |
| Min Focus Distance | 0.28m |
| Max Magnification | 0.17x |
| Diaphragm Blades | 7 (rounded) |
| Filter Size | 52mm |
| Dimensions | 65mm x 50.4mm |
| Weight | 187g |
| Mount | Fujifilm X-mount |
| Focus Motor | DC coreless motor |
| Weather Sealing | No |
| Stabilization | No |
| Hood | Included metal hood |
