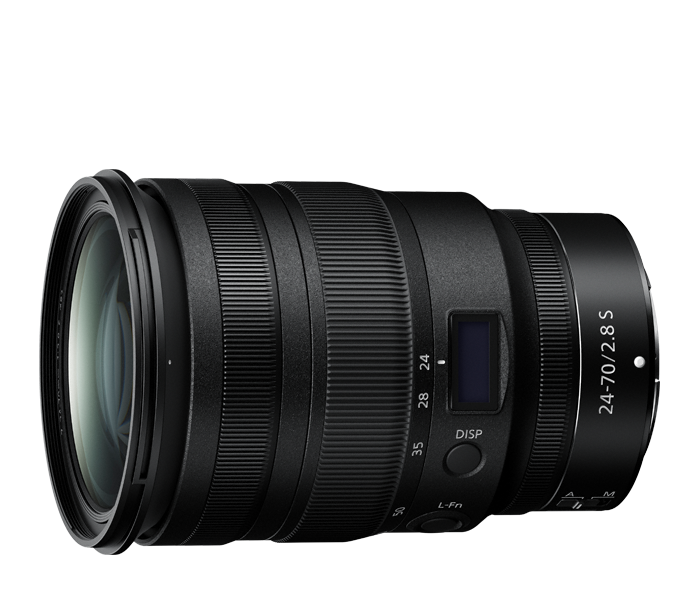

Nikon Z 24-70mm f/2.8 S
The ultimate professional standard zoom lens
Key Features
Lens Capabilities
Click the Links Below for Details
The Most Important Rings & Switches — Nikon Z 24-70mm f/2.8 S
| Ring / Switch / Control | Status | Note |
|---|---|---|
| Focus Ring | ✓ Present | Electronic focus ring |
| Zoom Ring | ✓ Present | Mechanical zoom ring |
| Aperture Ring | ✗ Not Present | Controlled via camera or lens control ring |
| AF/MF Switch | ✓ Present | |
| Image Stabilisation Switch | ✗ Not Present | Handled by camera body |
| Focus Limiter Switch | ✗ Not Present | |
| Function (L-Fn) Button | ✓ Present | Customizable L-Fn button |
| Zoom Lock Switch | ✗ Not Present | |
| Optical Image Stabilisation (OIS) | ✗ Not Present | |
| Weather Sealing | ✓ Present | Full dust and drip resistance |
How-to Use Nikon Z 24-70mm f/2.8 S
Welcome to the How-to section of the lens. In this Light & Composition University website, each page for a lens has a how-to section and a section for learning. The rings, switches and controls of each lens are placed differently between brands and models. The how-to section helps you operate the lens; however, if you are interested in learning photography, you also need to know what each control changes and why you would change it. Click the “Learn” or scroll down.
Learn & Master Photography with Nikon Z 24-70mm f/2.8 S
For over a decade, we have been teaching photography following a university standard. No one does it better than us. We have a selection of courses, diplomas, graduate and post-graduate programs, as well as some of our best-selling university press publications, to guide you in the best possible way for your lens. Enroll in the fundamentals and then move to the genres you want to master.
Technical Specification
| Type | Standard Zoom |
| Format | Full Frame (FX) |
| Aperture Range | f/2.8 - f/22 |
| Elements/Groups | 17/15 |
| Diaphragm Blades | 9 (rounded) |
| Min Focus Distance | 0.38m |
| Max Magnification | 0.22x |
| Filter Thread | 82mm |
| Focus Motor | Stepping Motor (STM) |
| Weather Sealing | Yes |
| Weight | 805g |
| Dimensions | 89mm x 126mm |
