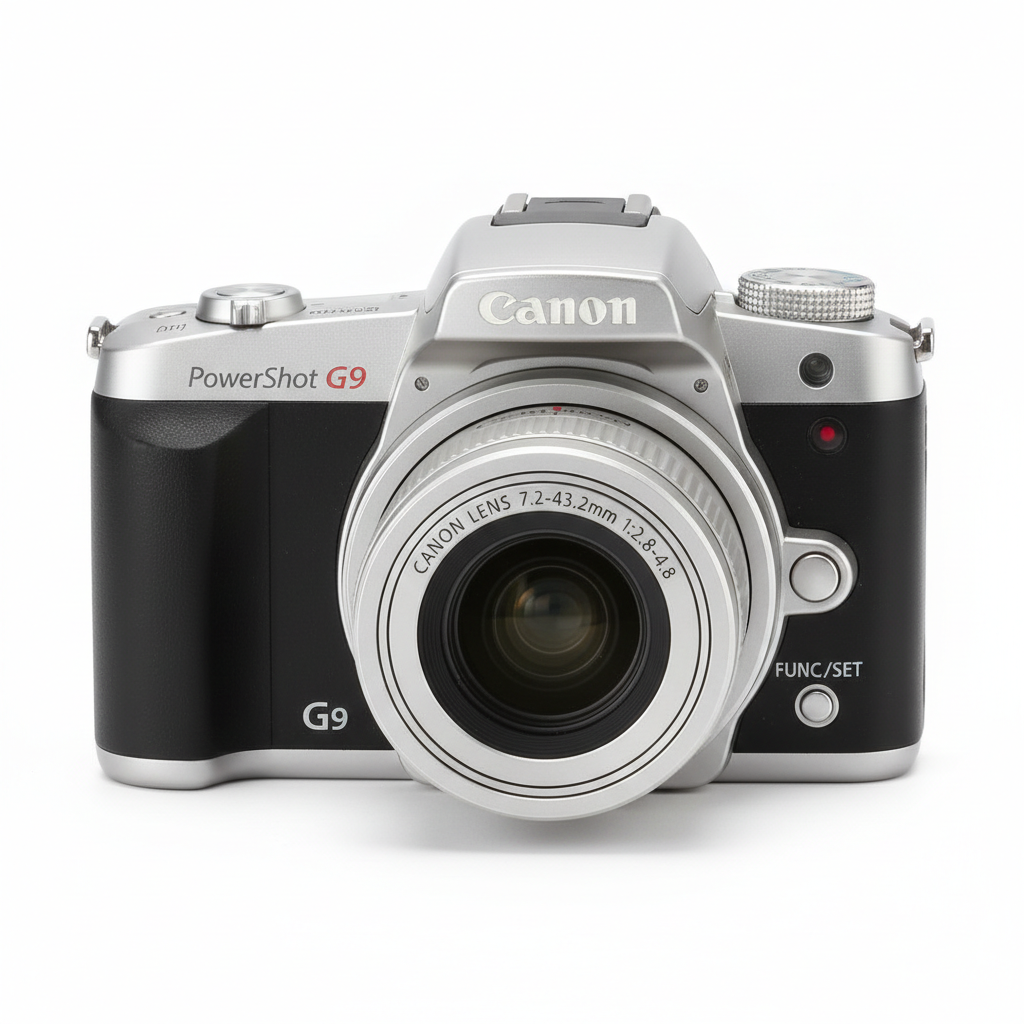

Canon PowerShot G9
The classic enthusiast compact with RAW support
Key Features
Camera Capabilities
Click the Links Below for Details
The Most Important Buttons & Dials — Canon PowerShot G9
| Control / Button / Dial | Status | Note |
|---|---|---|
| Shutter-release Button | ✓ Present | |
| Mode Dial | ✓ Present | |
| +/- EV (Exposure Compensation) Button | ~ Limited | Accessed via function menu |
| Dedicated ISO Button | ✗ Not Present | Accessed via function menu |
| Dedicated Aperture Dial / Ring | ✗ Not Present | |
| Dedicated Shutter Speed Dial | ✗ Not Present | |
| AF-ON Button | ✗ Not Present | |
| Main Command Dial | ✓ Present | Rear control wheel |
| Sub-Command Dial | ✗ Not Present | |
| Function (Fn) Buttons | ✓ Present | Shortcut button |
| Joystick / Multi-selector | ✓ Present | 4-way controller |
| AF-assist / Self-timer Lamp | ✓ Present | |
| Monitor Mode Button | ✓ Present | Display button |
| Video Record Button | ✗ Not Present | Via mode dial |
| Drive Mode Control | ~ Limited | Via directional pad |
How-to Use Canon PowerShot G9
Welcome to the How-to section of the camera. In this Light & Composition University website, each page for a camera has a how-to section and a section for learning. Simply because the buttons and the controls of each camera is located in different places that not only varies for brands but in each model. How-to section help you operate your camera, however, if you are interested to learn photography, not only you need to know how your camera works, but also you must know what you can change and why you do that to get better photo. Click the “Learn” or scroll down.
Canon PowerShot G9 Exposure Indicators
| Optimal exposure | Underexposed by 1/3 EV | Overexposed by over 2 EV |
|---|---|---|
|
− . 0 . +
|
− . 0 . +
|
− . 0 . +
|||||||►
|
The key to the photography is light, and it’s the exposure indicators, where you see how much light your camera sensor sees. These indicators both in monitor and viewfinder show whether the photograph would be under or over-exposed at the current setting. The amount of under or overexposure is shown in increments of 1/3 EV.
Learn & Master Photography with Canon PowerShot G9
For over a decade, we have been teaching photography following a university standard. No one does it better than us. We have a selection of courses, diplomas, graduate and post-graduate programs, as well as some of our best-selling university press publications, to guide you in the best possible way for your camera. Enroll in the fundamentals and then move to the genres you want to master.
Technical Specification
| Sensor | 1/1.7-inch CCD |
| Resolution | 12.1 Megapixels |
| ISO Range | 80-1600 |
| Autofocus | 9-point TTL contrast detection |
| Shutter Speed | 15 - 1/2500 sec |
| Burst Rate | 1.5 fps |
| Video | 640x480 @ 30fps |
| Stabilization | Optical (Lens-shift) |
| Viewfinder | Optical |
| LCD | 3.0-inch fixed LCD |
| Memory Card | SD/SDHC |
| Connectivity | USB 2.0 |
| Battery Life | 240 shots |
| Weight | 320g |
| Dimensions | 106 x 72 x 43 mm |
