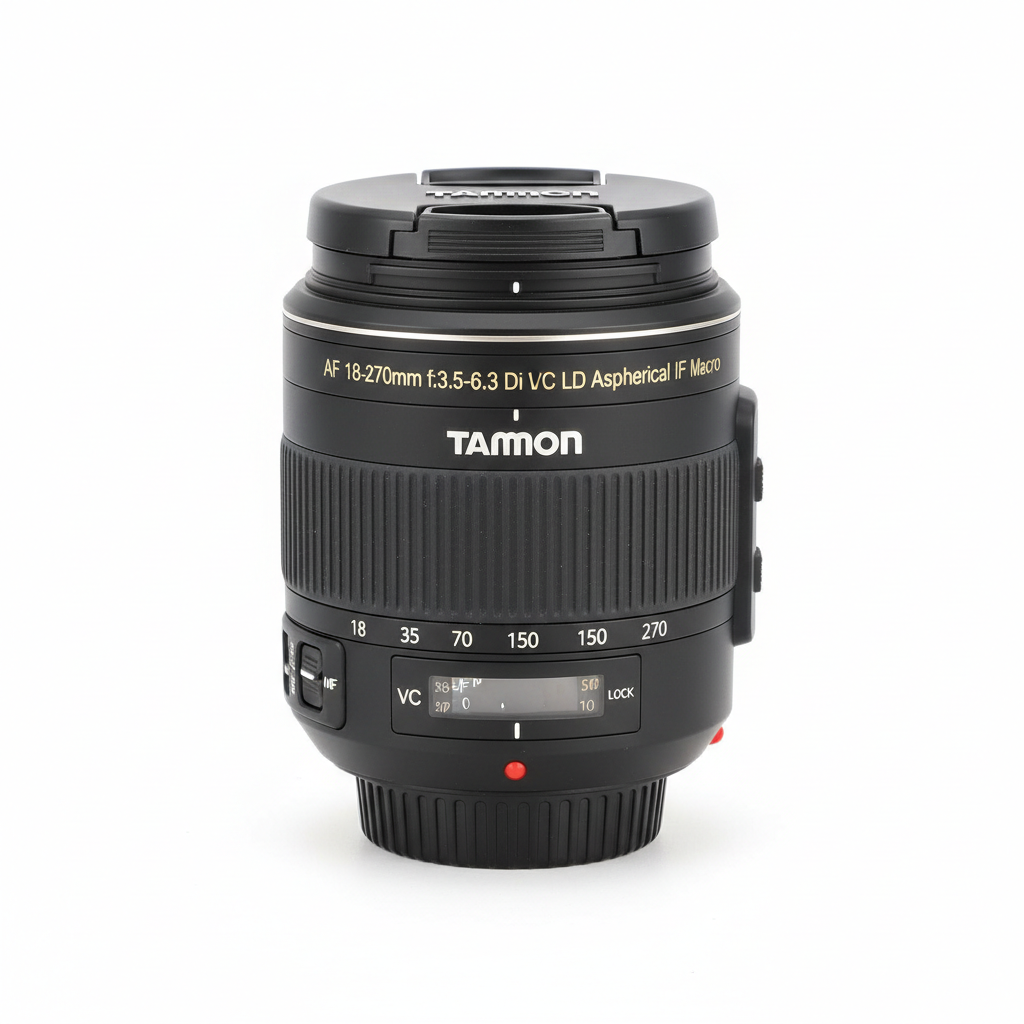

Tamron AF 18-270mm f/3.5-6.3 Di II VC LD Aspherical IF Macro
The ultimate all-in-one travel zoom lens
Key Features
Lens Capabilities
Click the Links Below for Details
The Most Important Rings & Switches — Tamron AF 18-270mm f/3.5-6.3 Di II VC LD Aspherical IF Macro
| Ring / Switch / Control | Status | Note |
|---|---|---|
| Focus Ring | ✓ Present | Manual focus ring at the front |
| Zoom Ring | ✓ Present | Large rubberized zoom ring |
| Aperture Ring | ✗ Not Present | Controlled via camera body |
| AF/MF Switch | ✓ Present | Physical toggle on lens barrel |
| Image Stabilisation Switch | ✓ Present | VC On/Off switch |
| Focus Limiter Switch | ✗ Not Present | |
| Function (L-Fn) Button | ✗ Not Present | |
| Zoom Lock Switch | ✓ Present | Prevents lens creep at 18mm |
| Optical Image Stabilisation (OIS) | ✓ Present | Tamron VC system |
| Weather Sealing | ✗ Not Present |
How-to Use Tamron AF 18-270mm f/3.5-6.3 Di II VC LD Aspherical IF Macro
Welcome to the How-to section of the lens. In this Light & Composition University website, each page for a lens has a how-to section and a section for learning. The rings, switches and controls of each lens are placed differently between brands and models. The how-to section helps you operate the lens; however, if you are interested in learning photography, you also need to know what each control changes and why you would change it. Click the “Learn” or scroll down.
Learn & Master Photography with Tamron AF 18-270mm f/3.5-6.3 Di II VC LD Aspherical IF Macro
For over a decade, we have been teaching photography following a university standard. No one does it better than us. We have a selection of courses, diplomas, graduate and post-graduate programs, as well as some of our best-selling university press publications, to guide you in the best possible way for your lens. Enroll in the fundamentals and then move to the genres you want to master.
Technical Specification
| Focal Length | 18-270mm |
| Aperture | f/3.5-6.3 to f/22-40 |
| Lens Construction | 18 elements in 13 groups |
| Angle of View | 75u00b0 33' - 5u00b0 55' |
| Min Focus Distance | 0.49m (19.3 in) |
| Max Magnification | 1:3.5 |
| Filter Size | 72mm |
| Diaphragm Blades | 7 |
| Stabilization | VC (Vibration Compensation) |
| Mount | Canon EF-S, Nikon F, Sony A |
| Weight | 550g |
| Dimensions | 79.6mm x 101mm |
